Tool Bar Applicators

At KBH Equipment, we understand that precision is key in agriculture, which is why our tool bar applicators are designed to deliver maximum efficiency and reliability on the field. Crafted with farmers in mind, these applicators ensure that every seed, fertilizer, and nutrient is delivered accurately, promoting healthier crops and optimized yields. Whether you’re managing a large-scale cotton operation or maintaining a family farm, our tool bar applicators integrate seamlessly with our full range of agricultural equipment, including seed tenders and dry fertilizer tenders. Invest in innovation that supports your agricultural ambitions—choose KBH Equipment for tools that work as hard as you do!

3 Point Hitch Liquid Applicator

Multiple configurations available (30″ to 72″)

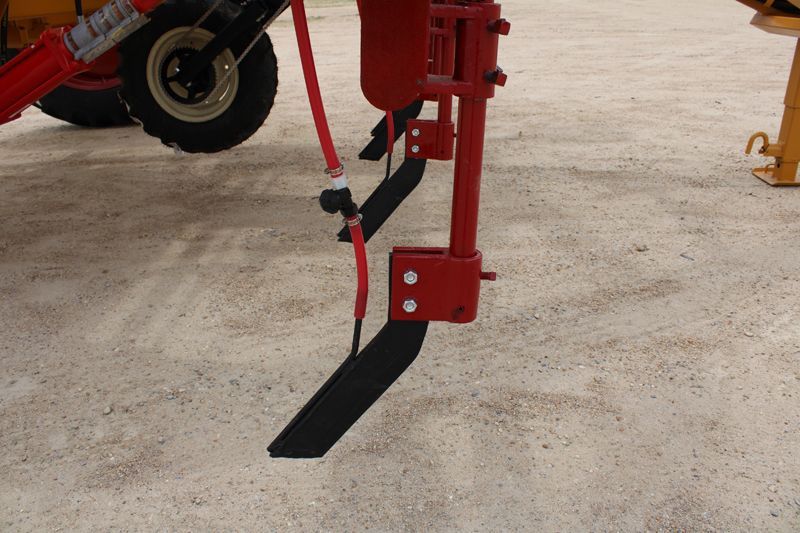

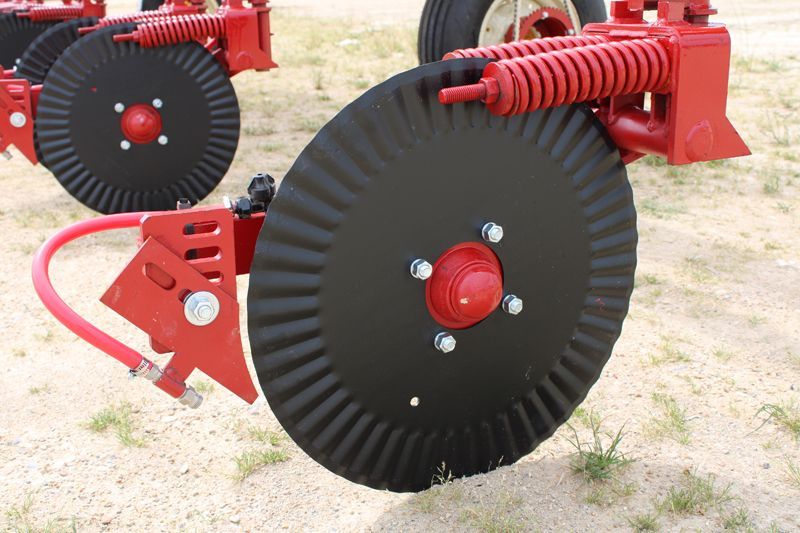

Back swept knives only, coulter only, or coulter with back/front swept knife

Single or double springs

Center section double framed (4″ x 7″ & 4″ x 4″ with 20″ hinges)

Optional 325 gallon tank

Optional bolt on hitch for tow tanks

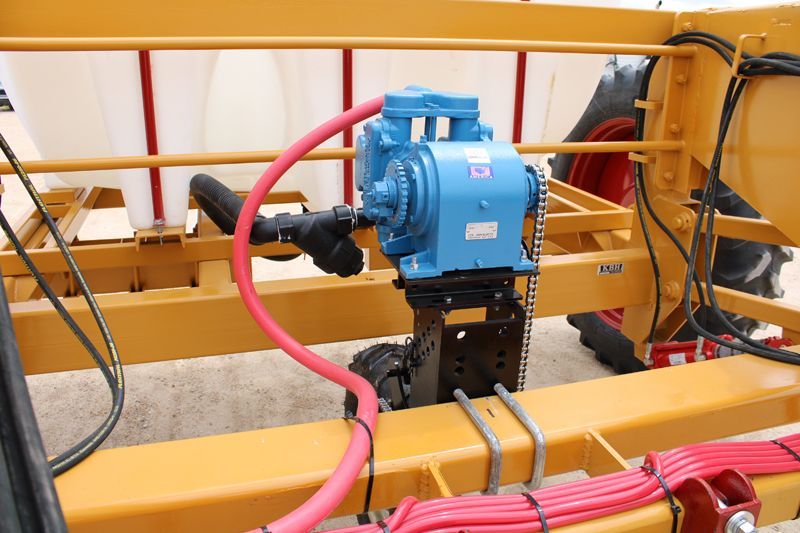

NGP7055 John Blue single piston pump standard or optional NGP9055 double piston pump

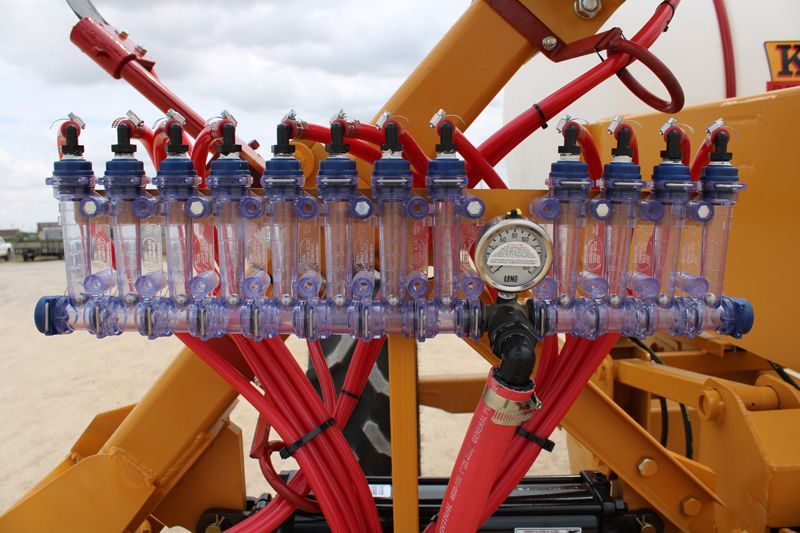

Flow divider or In-line orifice system available

710 Gallon Front Mount Applicator

• 710 Gallon Drainable Tank
• Adjustable Row Widths (30″/36″/38″/40″)
• 16.5 x 16.1 Flotation Tires
• CDS – John Blue Fertilizer Metering Pump

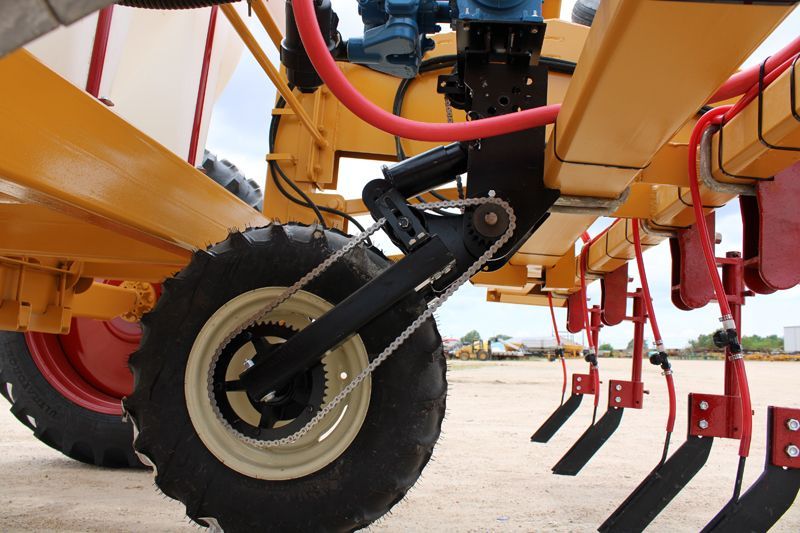

• Press Wheel Pump Drive
• Backswept Knife, Coulter Injection, Coulter Knife, or Dribble Drops
• Single Or Double Fold Tool Bars Available Up To 36′ Long
• Adjustable Height Gauge Wheels Standard On Double Fold Bars

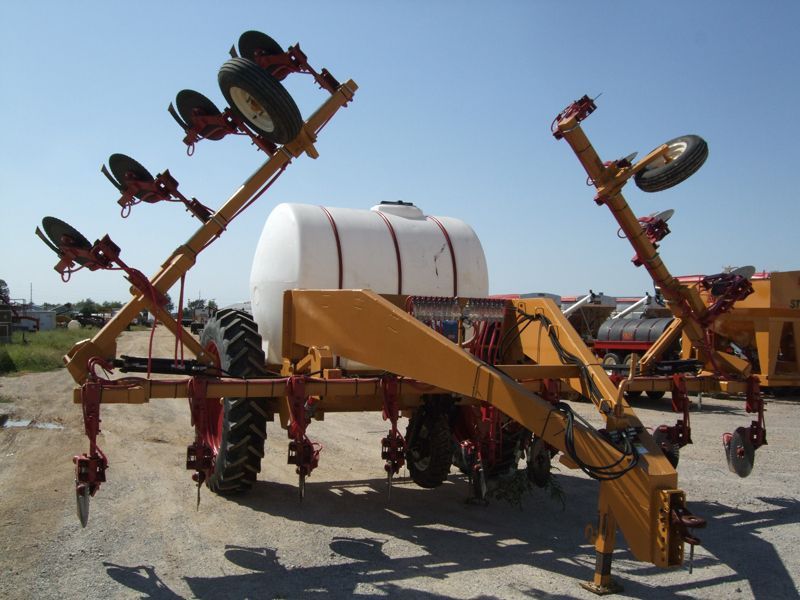

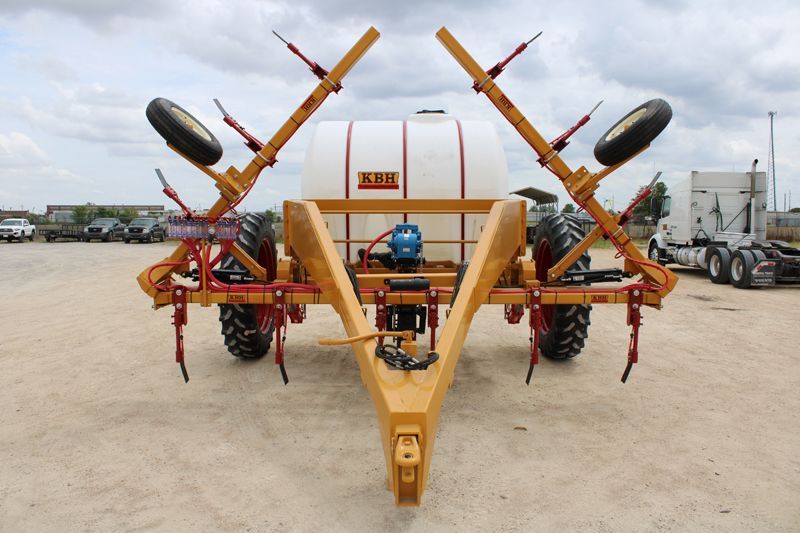

1035/1325 Gallon Goose Neck Liquid Applicator

1010/1610 Gallon Tow Tank

• 1010/1610 gallon complete drainable tanks
• 30″ turntables front and rear with 2 3/16″ king pin (rear axle may pin in place for transport)
• 34″ ground clearance
• Wheel spacings from 72″ – 120″
• 16.5 x 16.1 tires
• White tank
• 2″ plumbed
